Explore our customizable OEM/ODM product matrix featuring monocrystalline PV modules, high-efficiency MPPT controllers, and heavy-duty hot-dip galvanized steel cantilever poles.
Single-arm solar streetlights represent the architectural pinnacle of modern arterial, highway, and municipal illumination. Unlike dual-arm or omnidirectional post-top fixtures, single-arm cantilever systems demand rigorous mechanical calculations to balance aerodynamic drag, asymmetrical weight distribution, and solar panel moment loads. As a premier OEM/ODM Single Arm Solar Streetlights Supplier & Exporter, our engineering methodologies adhere strictly to EN 40-5, AASHTO, and ISO 1461 structural standards.

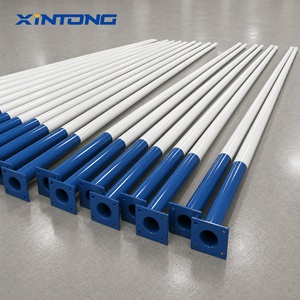

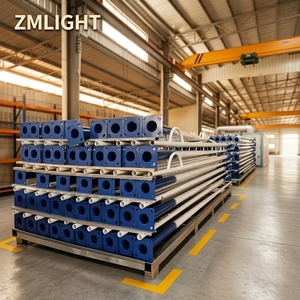

The cantilever arm serves a double utility: extending the optical emission engine directly over the roadway target zone (minimizing luminaire overhang waste) while acting as a rigid mount for high-wattage photovoltaic arrays. To mitigate wind-induced fatigue and extreme weather phenomena, our steel structural poles utilize Q235B or Q345B grade high-tensile steel, hot-dip galvanized with a protective zinc coating thickness exceeding 85 µm.
| System Subsystem | Standard Commercial Spec | OEM Customization Range (ODM Option) | Validation Protocol |
|---|---|---|---|
| Steel Pole Structure | Q235 Hot-Dip Galvanized Steel (6m - 10m) | Q345 Steel / Anodized Aluminum 6063-T6 (4m - 12m) | ASTM A123 / ISO 1461 Salt Spray Test > 1500h |
| Photovoltaic Module | Monocrystalline PERC (21.5% efficiency) | N-Type TOPCon Bifacial Glass-Glass (Up to 24.2%) | IEC 61215 / IEC 61730 Load Rated (5400 Pa) |
| Battery Storage | LiFePO4 (Lithium Iron Phosphate) 12.8V | High-Temp / Low-Temp LiFePO4 (-30°C to +75°C) | UN38.3 / IEC 62133 Thermal Runaway Certified |
| MPPT Controller | Smart MPPT Tracking (>98% conversion) | IoT LoRaWAN / NB-IoT / Zigbee Sensor Integration | EN 61000-6-3 EMC Compliance |
| Optical Luminaire | High Flux LED (160 - 180 lm/W) | Custom Optical Batwing Lens (Type II-M, Type III-M) | IESNA LM-79 / LM-80 / TM-21 Reports |
True operational longevity in off-grid solar infrastructure requires perfect synergy between energy capture, electrochemical storage, and optical output management. Modern OEM/ODM buyers cannot afford the premature component failure typical of unbranded solar lighting. Our systems leverage advanced subsystems designed for a 10-to-15-year operational lifecycle with minimal total cost of ownership (TCO).
Utilizing dual-glass bifacial solar panel modules allows single-arm streetlights to generate up to 25% additional power from ground albedo light, ensuring rapid battery replenishment even on overcast days.
Integrated Lithium Iron Phosphate battery packs deliver 6,000+ deep charge/discharge cycles at 80% DOD. Embedded BMS protection guards against over-voltage, thermal spikes, and deep depletion.
Optional Zhaga Book 18 or NEMA 7-Pin sockets allow seamless connection to smart city central management software (CMS), microwave motion sensors, and automated multi-stage nocturnal dimming curves.
Global municipal procurement strategies are rapidly shifting from grid-tied LED retrofits to fully autonomous, zero-emission solar single-arm infrastructure. Key market drivers reshaping B2B and public sector tenders include:
Combining rigorous quality engineering, scalable OEM/ODM capacity, and comprehensive international compliance certifications to empower global lighting distributors and contractors.
From CAD pole structural design, wind-load calculation engineering, to customized CCT (2700K - 6500K), optical beam angles, and private branding label packaging.
Every single arm solar light undergoes 100% automated SMT assembly, IP67 ingress testing, integrating spheres optical testing, and 72-hour burn-in stress testing.
Fully compliant with CE, RoHS, CB, IEC 62722, IEC 62133, and IP66/IP67/IK10 standards. Documented photometric IES files ready for Dialux simulation lighting design.
DDP shipping support across North America, Europe, Southeast Asia, and the Middle East, backstopped by a 5-year full system replacement warranty guarantee.
Addressing technical, structural, and commercial inquiries for engineering procurement contractors (EPCs) and municipal buyers.
Our single-arm solar streetlight poles are structural components engineered using finite element analysis (FEA). We calculate the combined wind moment vector of the cantilever arm, luminaire fixture, and solar panel Effective Projected Area (EPA). By using Q235B/Q345B tapered steel with wall thicknesses from 3.0mm to 5.0mm, and reinforcing the base flange plate with anchor gusset plates, our systems are certified to endure continuous wind speeds of 160 mph (70 m/s).

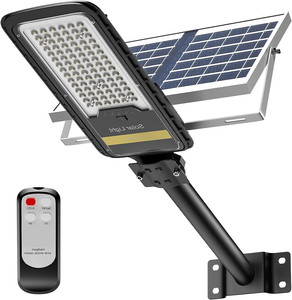

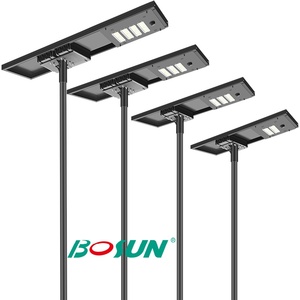

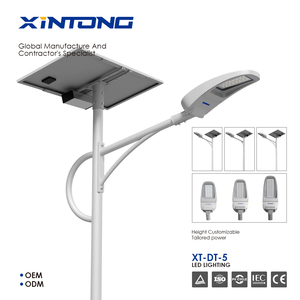

All-in-One (Integrated) single arm solar lights consolidate the PV module, LiFePO4 battery, MPPT controller, and LED engine into a single housing mounted on the cantilever arm. They offer rapid, plug-and-play installation for poles up to 8m. Split systems place the solar panel at the very top of the pole with an adjustable tilt angle, housing the battery either inside a subterranean battery box or high on the pole. Split systems allow for larger PV arrays (up to 300W+) and higher battery capacities, ideal for high-wattage highway lighting and low sun-insolation latitudes.
System autonomy is achieved through three key mechanisms: 1) Sizing the LiFePO4 battery reserve capacity to 3-5 times the nightly power consumption (Ah calculation buffer); 2) Smart MPPT controllers equipped with Adaptive Lighting Systems (ALS) that dynamically throttle lumen output based on real-time battery state-of-charge (SOC); and 3) Bifacial solar panel technology that continues collecting diffused ambient light and ground reflectance during heavy cloud cover.
We provide full ODM customization for Dark-Sky compliance, including 0-degree tilt horizontal luminaire mounting, full-cutoff optical shields, zero-uplight lens geometries (U0 rating), and color temperature selection down to 2200K warm white or 590nm monochromatic narrow-spectrum amber LEDs to safeguard turtle hatchlings and coastal ecosystems.
While initial hardware costs for solar single-arm streetlights can be slightly higher than simple grid-tied fixtures, the total initial project expenditure is typically 30% to 50% lower due to the complete elimination of trenching, underground wiring, transformer substations, and electrical permits. Payback periods average between 1.5 to 3 years, with zero recurring electrical energy bills over the 25-year solar panel lifespan.
Contact our engineering consulting team today for custom OEM/ODM specifications, Dialux lighting simulations, photometric test reports, and factory direct volume pricing quotes.
